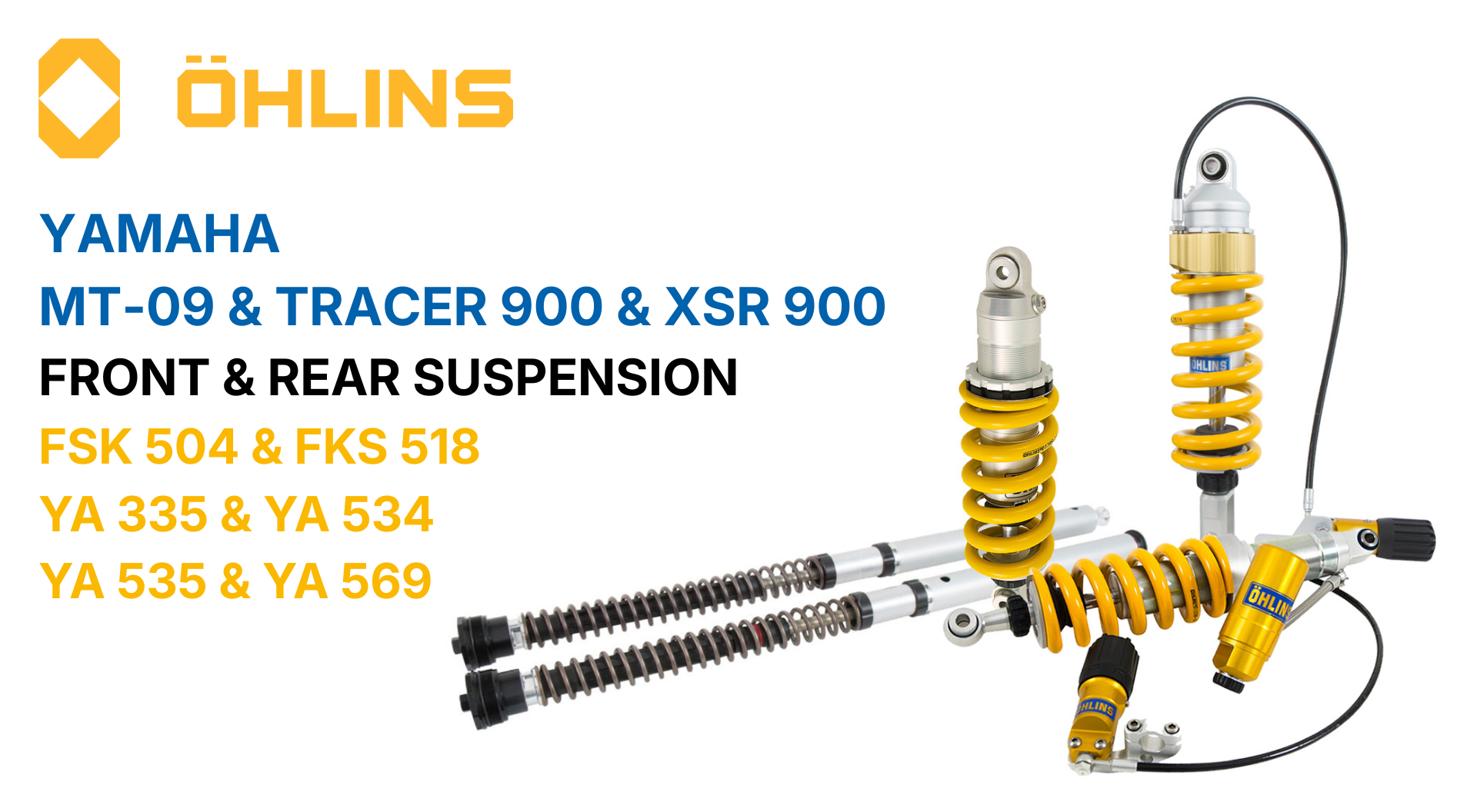

Transform your Yamaha MT-09, Tracer 900 & XSR 900 into an urban warrior

Öhlins developed a high quality front fork cartridge kit and feature-packed rear shocks to upgrade Yamaha’s MT-09, Tracer 900 & XSR 900 and the results are awesome! Are you ready to transform your Yamaha into an urban warrior? Then fit both front and rear upgrades and experience full transformation!

Cartridge kit NIX 30

Öhlins part no. FKS 504
MT-09 (2014-2020)
MT-09 SP (2018-2020)
Tracer 900 (2015-2020)
Tracer 900 GT (2018-2020)
XSR900 (2016-2021)

Öhlins part no. FKS 518
MT-09 (2021-2022)
Tracer 900 (2021-2022)
XSR900 (2022)

Using the well proven NIX 30 technology from the Road & Track range, Öhlins developed this excellent cartridge kit for the Yamaha MT-09, Tracer 900 & XSR 900.

Now, you can fully personalise your front suspension using the kit’s stylish replacement top caps, which have rebound damping adjustment on one leg, compression damping on the other and adjustable spring preloads on both.

The Öhlins front fork cartridge kit fits easily inside the standard fork legs and improves overall chassis performance and “feeling” with enhanced cornering and increased front-end stability, especially when braking.

Rear shock S46DR1

Öhlins part no. YA 335
MT-09 (2014-2020)
Tracer 900 (2015-2017)
XSR900 (2016-2021)

The Öhlins S46DR1 rear shock is from the STX46 range and uses a Monotube, high pressure gas design with external reservoir for typical Öhlins performance and durability.

Designed for Yamaha MT-09, Tracer 900 & XSR900 this high quality shock has adjustable rebound damping and spring preload. The shock improves overall rider “feeling” with enhanced traction and stability, transforming the following Yamaha models.

Rear shock S46DR1S

Öhlins part no. YA 534
MT-09 (2014-2020)
Tracer 900 (2015-2017)
XSR900 (2016-2021)

The Öhlins S46DR1S rear shock is also from the STX46 range and uses a Monotube, high pressure gas design with external reservoir for typical Öhlins performance and durability.

Designed for Yamaha MT-09, Tracer 900 & XSR900, this high quality shock has adjustable rebound damping with the additional feature of a handy hydraulic spring preload adjuster. The shock improves overall rider “feeling” with enhanced traction and stability, transforming the following Yamaha models.

Rear shock S46HR1C1S

Öhlins part no. YA 535
MT-09 (2014-2020)
Tracer 900 (2015-2017)
XSR900 (2016-2021)

Öhlins part no. YA 569
MT-09 (2021-2022)

The Öhlins S46HR1C1S rear shock is also from the STX46 range and uses a Monotube, high pressure gas design with external reservoir for typical Öhlins performance and durability.

Designed for Yamaha MT-09, Tracer 900 & XSR900 this high quality shock has adjustable compression, with rebound damping in addition as well as the remote hydraulic spring preload adjuster.
