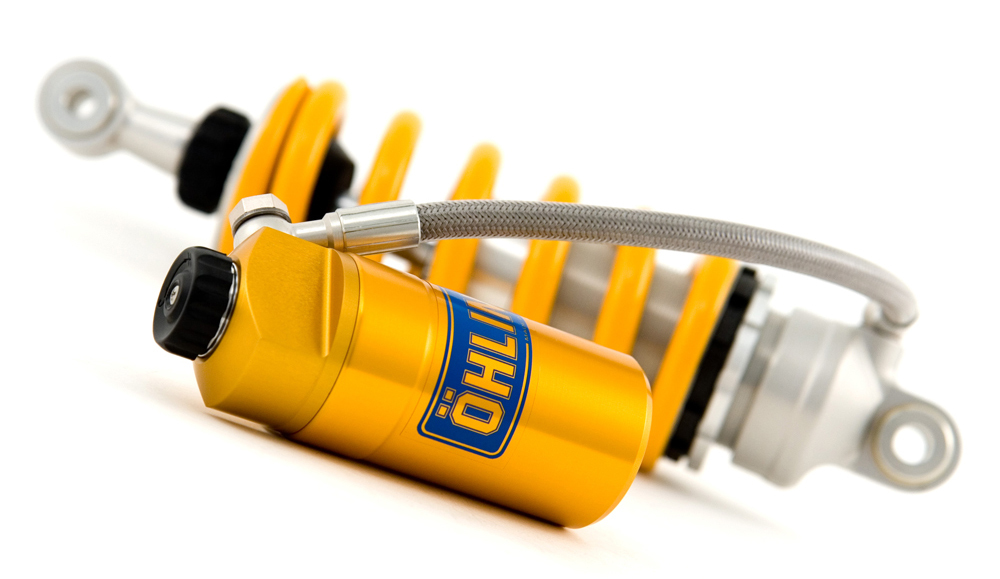

S46HR1C1
Discover what Öhlins suspension codes really mean!
Ever seen an Öhlins rear suspension product code and wondered what it meant? Well here’s your chance to learn Öhlins motorcycle rear suspension inside out. Scroll down and learn about rear shock types, reservoir types, adjustability levels and pretty much everything you need to know from a single code.
CODE KEY
Shock type

S         Single tube
T         Twin tube
Piston diameter

30        Piston diameter 30 mm
36        Piston diameter 36 mm
40        Piston diameter 40 mm
44        Piston diameter 44 mm
46        Piston diameter 46 mm

Shock type

P         Piggy-back reservoir
H         Hose-mounted reservoir
E         Emulsion
D         Divided piston

Adjustment features

O         Non-adjustable
R1       Rebound adjustable
R2       Rebound adjustable, 2-way
R3       Rebound adjustable, CES
C1       Compression adjustable
C2       Compression adjustable, 2-way
C3       Compression adjustable, CES
L          Length adjustable
S          Hose-mounted hydraulic spring preload adjuster
B          Integrated hydraulic spring preload adjustment
Q2       Twin piston shock absorber
I           Base valve
W         Delivered without spring

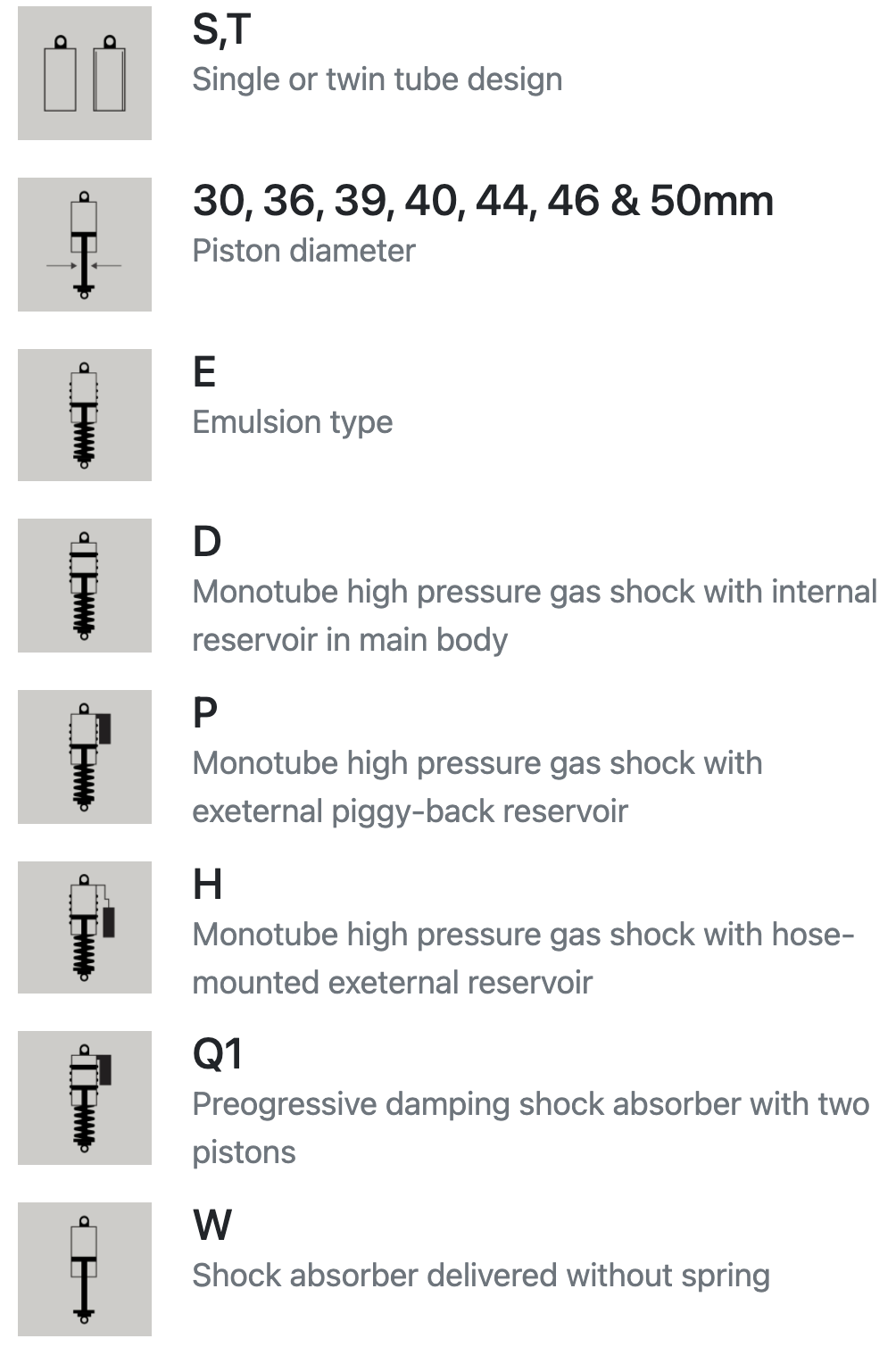

SHOCK ABSORBER TYPE

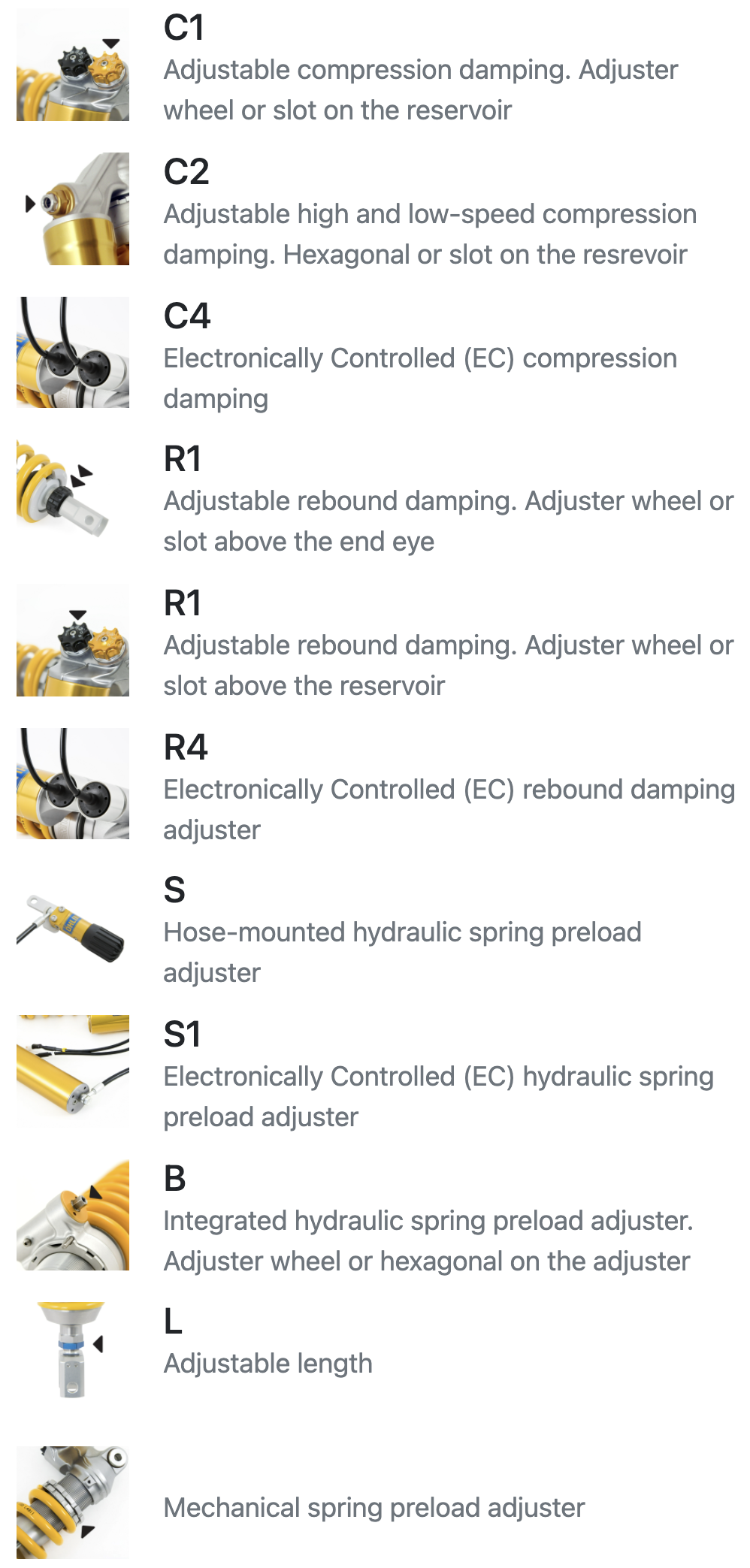

ADJUSTMENT FEATURES
